Starting the Simulator

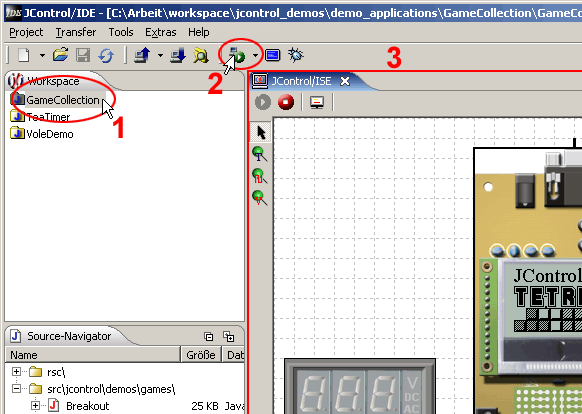

To start the simulator, select the project simulate in the workspace (fig. 1.1). Open the simulator by clicking the simulation icon (fig. 1.2) in the toolbar. The simulator appears in the editor panel showing a default simulation environment (fig. 1.3).
