The Workspace

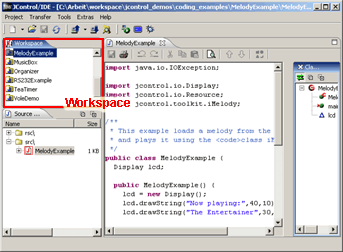

Figure 5: JControl/IDE: Workspace

The workspace shows a list of all currently opened JControl projects. The icons in front of the name have different meanings:

•   indicates a JAVA™ project

•   indicates a Class project

•   indicates an Archive project, i.e. a project that has been downloaded from a JControl device.


By clicking the right mouse button in this area, the context menu as shown in figure 6 is displayed:

Figure 6: Context menu of the workspace

The option Rename allows to change the name of the selected project. The project file name will also change if the old project name and the filename were equal before. The other items of this menu are equivalent to the items in the Project menu as discussed in the previous section .
