Overview

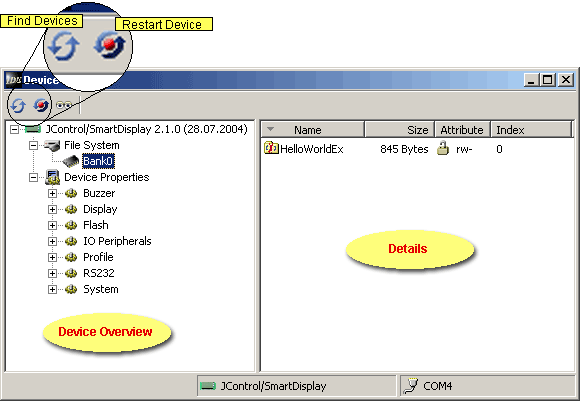

The Device-Browser is divided into

•  Toolbar The toolbar contains the items Find devices and Restart device. The third item Wink device is currently not implemented.

•  Device Overview In this place all currently connected devices are listed. According to the device type, the device's file system with all available flash memory banks and the device's properties are shown in a hierarchical tree structure.

•  Details Here, a detailed view according to the item selected in the overview section (left) is displayed. In the case of the file system the contents of the flash memory banks are listed. It is possible to upload or download projects or ready-to-use archive files. Even the device's property settings can be modified here.
