AnalogClock

AnalogClock ist eine GUI-Komponente zur einfachen grafischen Darstellung einer analogen Uhr mit Stunden-, Minuten- und Sekundenzeiger. Die AnalogClock ist frei skalierbar. Da sie aber nicht animiert ist, muss diese Aufgabe von der Anwendung übernommen werden. Dazu kann die Methode setValue aufgerufen werden, womit die Zeigerposition aktualisiert wird.

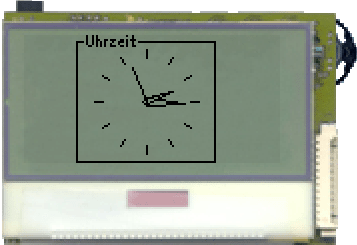

Bild 5 zeigt einen Screenshot der JControl-Anwendung VoleAnalogClockExample. Der Quelltext ist unten aufgelistet. Das Beispielprogramm demonstriert die Befehle zur Instantiierung einer AnalogClock und zeigt, wie die Uhrzeit durch eine einfache Schleife fortlaufend aktualisiert werden kann.

Bild 5: Das VoleAnalogClockExample

1    import jcontrol.lang.ThreadExt;
2    import jcontrol.system.Time;
3    import jcontrol.ui.vole.Border;
4    import jcontrol.ui.vole.Frame;
5    import jcontrol.ui.vole.meter.AnalogClock;
6
7    /**
8     * <p>This example demonstrates how to use the
9     * component AnalogClock within the GUI framework
10     * JControl/Vole.</p>
11     *
12     * <p>(C) DOMOLOGIC Home Automation GmbH 2003-2005</p>
13     */
14    public class VoleAnalogClockExample extends Frame {
15
16      /**
17       * Create and continuosly update an AnalogClock
18       */
19      public VoleAnalogClockExample() {
20        // create a new AnalogClock
21        AnalogClock ac = new AnalogClock(35, 7, 26, true);
22        this.add(ac);
23
24        // add a border
25        this.add(new Border("Analog Clock", 26, 0, 70, 64));
26
27        // make us visible
28        show();
29
30        // update the AnalogClock's time once a second
31        for (;;) {
32          Time t = new Time();
33          ac.setValue(t.hour, t.minute, t.second);
34          try {
35            ThreadExt.sleep(1000);
36          } catch (InterruptedException e) {}
37        }
38      }
39
40      /**
41       * Instantiate the example
42       */
43      public static void main(String[] args) {
44        new VoleAnalogClockExample();
45      }
46    }
Listing 5: VoleAnalogClockExample.java
